Cutting Services

Routing, Punching, and Metal Laser Cutting in PA

(610) 395-8214

Hours:

Cutting for Large and Small Production Runs

When it comes to precision cutting services, Penn Sheet Metal brings 100+ years of experience to every project we undertake. From large production runs to small projects, we do it all.


Our work comes with valuable warranties, a satisfaction guarantee, in-store pickup and delivery, and free quotes ready within 48 hours! Our turnaround times are fast and based on the details of the specific job.


Call today for service.

Our Cutting Tools and Methods

High-Performance Metal Cutting Services

Call for a Free Quote

(610) 395-8214

(610) 395-8214

  • Metal Laser Cutting in PA

    Metal laser cutting in PA with CO2, combining high performance with cut quality, is second to none. The Trumpf 3030 4k Turbo laser, which is robust and reliable, creates extremely smooth cutting edges which generally do not require post-processing. Fit out with automation, we can run your product even more efficiently than ever before.

  • TRUMPF 3030


    Max Sheet Size – 5’ x 10’

    Maximum Sheet Thickness, Mild Steel – 3/4”

    Maximum Sheet Thickness, Stainless Steel – 1/2”

    Maximum Sheet Thickness, Aluminum – 3/8”

    Automation Control for Consistent Run Times

TRUMPF 303

  • TRUMPF 1030 6 kW


    Max Sheet Size – 5’ x 10’

    Maximum Sheet Thickness, Mild Steel – 15/16”

    Maximum Sheet Thickness, Stainless Steel – 15/16”

    Maximum Sheet Thickness, Aluminum – 15/16”

    Maximum Sheet Thickness, Copper – 3/8”

    Maximum Sheet Thickness, Brass – 3/8”

    Automation Control for Consistent Run Times

TRUMPF 1030

  • CNC Turret Punch Press


    This machine has a 50-ton capability on .5-inch thickness or less.



  • Euromac


    Max Sheet Size – 4’ x 10’ – custom lengths available if needed

    Typical Sheet Thickness, Steel – 24ga up to 1/4”

    Typical Sheet Thickness, Aluminum – 032 up to 1/4”


Euromac

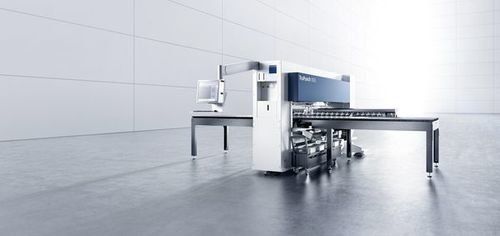

  • TRUMPF 2020


    Max Sheet Size – 4’ x 10’

    Typical Sheet Thickness, Steel – 24ga up to 1/4”

    Typical Sheet Thickness, Aluminum – 032 up to 1/4”


TRUMPF 2020

  • Water Jet Cutting in PA


    This method is accurate to within +/- 0.005” on material up to 5 feet x 10 feet x 6 inches thick.


    We are proud to provide water jet cutting PA relies on as an accurate, efficient, precise, and eco-friendly option for cutting materials. It uses water and almandine garnet to safely cut materials. We can cut metals, rubber, granite, glass, and a variety of other materials. Contact Penn Sheet Metal today to learn more about our options for water jet cutting PA residents strongly recommend.

  • Techni Waterjet


    Max Sheet Size – 5’ x 10’


    Capability to cut up to 6”. Thick material and can maintain a tolerance of +/- .005 on most other materials. Ability to cut most uncommon materials outside of standard metals that Penn Sheet Metal normally carries including rubber, plastic, stone, and much more!

Waterjet

  • CNC Routing


    The newest edition to our line of available cutting services, the AXYZ Panel Builder offers a 16-foot x 6-foot cutting area that allows our two spindle heads and saw to take on the toughest of jobs. We can route ACM, aluminum plate, hard plastics, wood, and much more.

  • AXYZ Router


    Max Sheet Size – 6’ x 26’

    Aluminum Composite Panels – 3mm, 4mm, 6mm

    Maximum Sheet Thickness, Plastics – 4”

    Maximum Sheet Thickness, Wood – 5”

    Maximum Sheet Thickness, Aluminum – 3/4”

CNC Router
